Thermal Hot Oil Pump / Water Cooled Pump

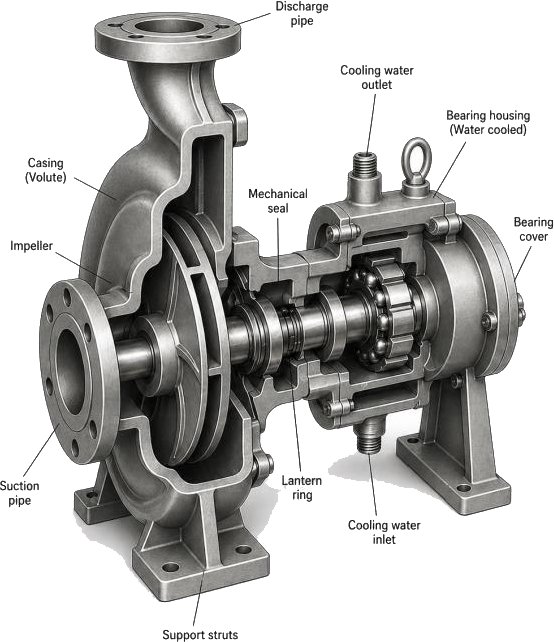

Thermal Hot Oil Water Cooled Pumps are designed to handle high-temperature fluids while keeping the motor and bearings at safe temperatures. The pump casing is equipped with a heat exchanger that circulates water to absorb and dissipate the heat, isolating the hot oil from the motor section. This allows the pump to operate reliably without the need for external cooling or reliance on potentially poor-quality cooling water.
This efficient water-cooling design enables the use of standard motor insulation and bearings, reducing both initial costs and long-term maintenance. Ideal for industries such as chemical processing, oil and gas, and heating systems, these pumps provide a cost-effective solution for safely managing high-temperature fluids in demanding environments.
Download Thermal Hot Oil Pump / Water Cooled Pump Catalogue
FEATURES
- Single stage, end suctioncentrifugal pumps.
- Main pump dimensions are compatible with DIN 24256 (ISO 2858).
- Single Entry, Closed Type impeller is used.
- Radial vanes are used behind the impellers to lower the pressure and to balance the thrust (axial force).
- The pump and the motor are connected by means of a flexible coupling on a comon base plate.
- Maintenance of the punp is very easy.
- The shaft and the other rotating parts can be removed without dismantling the suction and the discharge system.
- Since the pump uses many standard parts,spare parts are readily available.
- These pump are designed so thatthere is no need for external cooling.
- Due to natural convection the pump temperature decreases towards the roller bearing.
OPERATING RANGE
Capacity : 10 to 400 m3/hr
Head : 5 to 100 mtr
Discharge Size : Dn 32 to 100 mm
Suction Flange : NB 40 to NB 125
Temperature : 100 to 350℃
Speed : 1500 to 3000 rpm
Pressure : 16 Kg/cm2
