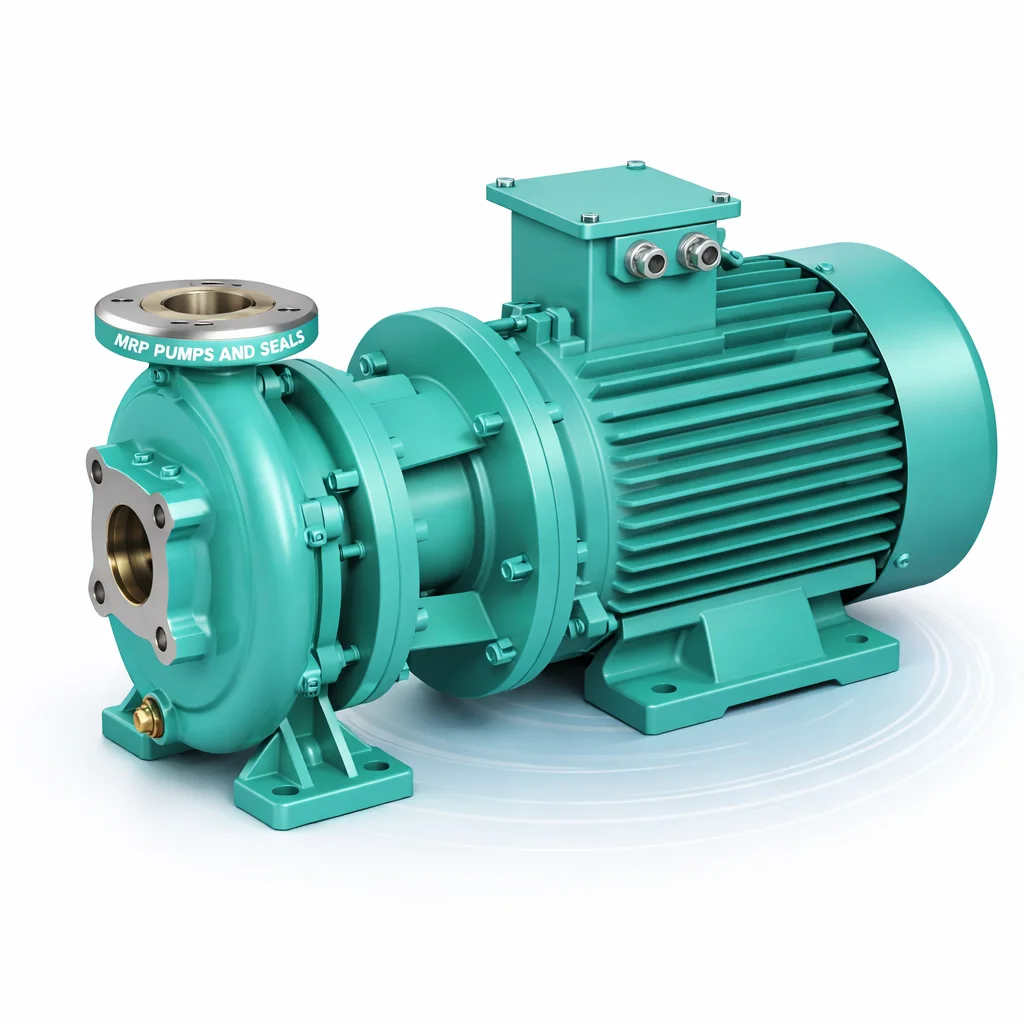

Centrifugal Monoblock Pump
Our close coupled centrifugal pumps are designed for reliable and efficient fluid transfer in a wide range of industrial applications. These pumps feature a compact design where the motor is directly mounted to the pump, eliminating the need for a shaft coupling. This setup reduces space requirements, minimizes the risk of misalignment, and ensures a more reliable operation.
Built with durable, corrosion-resistant materials, these pumps offer long-lasting performance even in tough environments. Their simple design makes them easy to install and maintain, reducing downtime and maintenance costs. Ideal for applications in water treatment, HVAC, and chemical industries, our close coupled centrifugal pumps provide a cost-effective, efficient solution for your fluid handling needs.
Download Centrifugal Monoblock Pump Catalogue
Applications
- Industrial Usage such as Cooling, Heating, Circulating, Boosting, Refrigeration, Air Conditioning and Cold Storage Systems.
- Agriculture Usage such as General Irrigation, Sprinkler Irrigation and De-watering Systems.
- Civil Usage such as Water Supply Schemes For Buildings, Hotels and Commercial Complexes.
- To Handle Clean as well as Moderately Aggressive Liquids.
Features

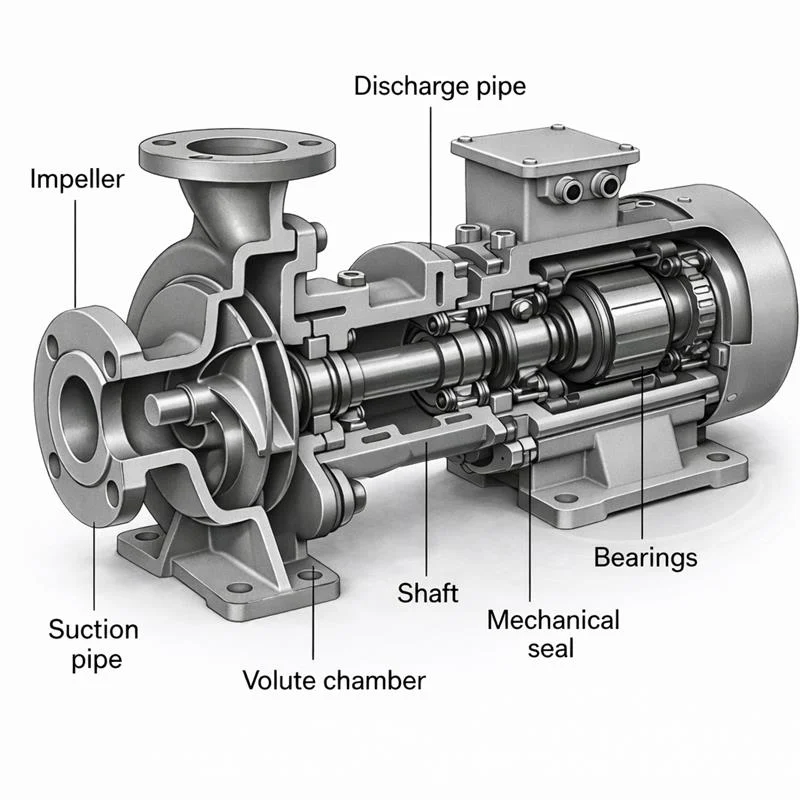

- Horizontal, Centrifugal, Monoblock (pump & motor have been combined to form a single unit) type pump fitted with single stage closed Impeller in Volute Casing having axial end suction and vertical centerline delivery.
- No fear of motor burning due to wide operating voltage range and Non-overloading power characteristics at any operating point.
- Advantage of mounting space saving due to elimination of base plate, coupling and coupling guard.
Operating Range
Head Range : up to 88 meter
Capacity Range : up to 4000 LPM
Sealing Arrangement : Mechanical Seal / Gland Packing
Operating Temperature : up to 70° C
Rating : 0.75 kW to 22.5 kW (2 Pole)
Supply System : 3 Ø – 380 / 415 Volts – 50 / 60 Hz – A.C.
Insulation : Class B / F
Protection : IP 44 / 55
Enclosure : Totally Enclosed Fan Cooled (TEFC)
Rotor Type : Squirrel Cage Rotor (SCR)
Operational Duty : S1
M.O.C. : Grey Cast Iron, Bronze, Stainless Steel SS 316/304
Custom-built Design : Motors with different supply voltage
and supply frequency can be offered on
request.
Operating Range
Head Range : up to 88 meter
Capacity Range : up to 4000 LPM
Sealing Arrangement : Mechanical Seal / Gland Packing
Operating Temperature : up to 70° C
Rating : 0.75 kW to 22.5 kW (2 Pole)
Supply System : 3 Ø – 380 / 415 Volts – 50 / 60 Hz – A.C.
Insulation : Class B / F
Protection : IP 44 / 55
Enclosure : Totally Enclosed Fan Cooled (TEFC)
Rotor Type : Squirrel Cage Rotor (SCR)
Operational Duty : S1
M.O.C. : Grey Cast Iron, Bronze, Stainless Steel SS 316/304
Custom-built Design : Motors with different supply voltage
and supply frequency can be offered on
request.
